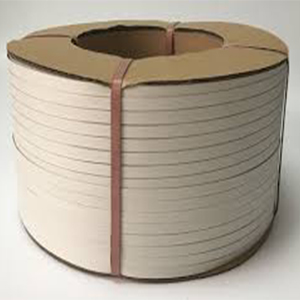

Giraffe PP Strap

Giraffe PP strap are suitable for light and medium duty packaging and perform well medium duty packaging and perform well on all types of selling machines -
Manual | Semi-auto | Automatic

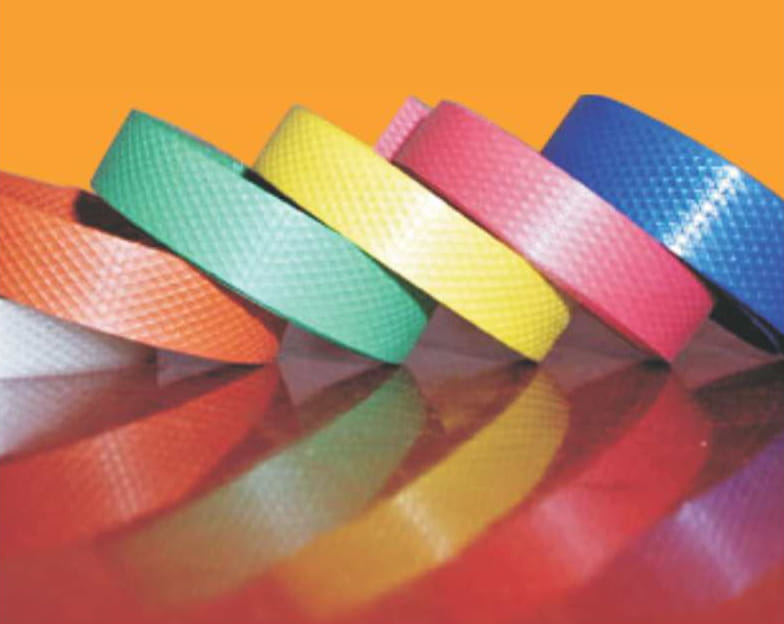

Various color options are available as per customer request.
Print facility also available with company logo and name.

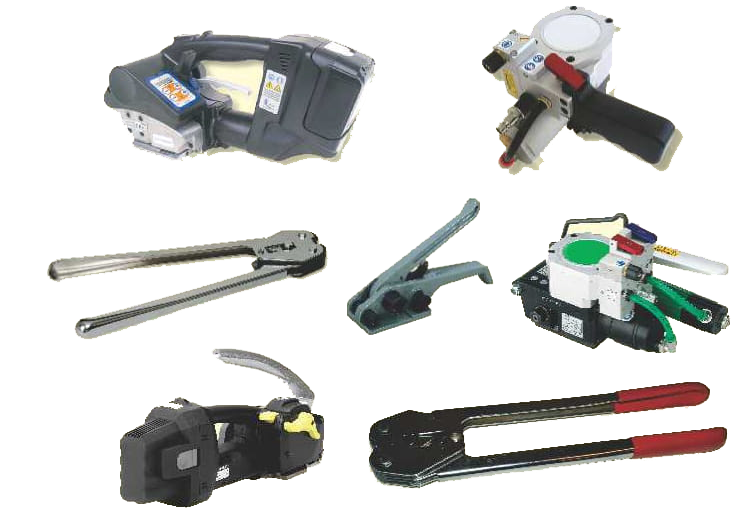

Packaging/Sealing Tools

A range of manual, pneumatic and battery operated tools can be arranged as per customer needs.

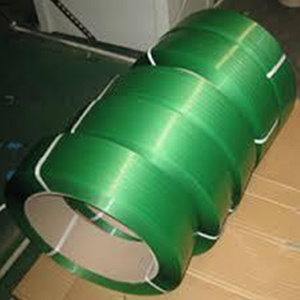

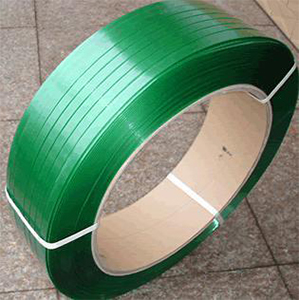

PET Strap

Due to the numerous advantages and ease of use, PET straps have largely replaced steel straps and are being extensively used in a variety of Industries.

Applications

  • Cotton/Jute bales
  • Metal industry-sheets, rods, coils, pipes etc
  • Pallellsatton-cartons, film rolls, bags etc
  • Glass Industry
  • Ceram. industry
  • Laminates & plywood manufacturing units
  • Paper industries
  • Automobile components and spare parts
  • Home appliances and white goods
  • Medium & heavy engineering units
  • Polyester fiber and yarn baling
  • Construction materials industries
  • Rubber industries
  • A1611111121.1 ingot
  • Beverage industry
  • Textile

Benefits/Advantages

  • • High impact resistance-PET straps have 5 times more shock resistance compared to steel straps. Thus, the chance of strap breakage is much lower compared to steel straps in case of sudden impact.
  • • Weather resistance - PET straps are resistant to water and UV light They have no decomposition or rust formation and eliminate product damage due to corrosion staining. Ideal for open storage.
  • • Tension retention - It has excellent retained tension properties which makes It Ideal for heavy duty loads that require good initial tension as well as retained tension.
  • • Elongation and elasticity - During handling and transportation, the pack may move and there can be change In configuration. PET straps being elastic in nature, elongate and then contract and stick back with the pack thereby holding It tightly under tension. Steel straps may become loose In such cases.
  • • Human and product safety - PET straps do not snap back or recoil when cut unlike steel strap and do not have sharp edges. They ate safer to handle and the chances of scratching or indenting of the product are eliminated.
  • Environment friendly - as an Inert material, the strap can be either recycled, safely burled or incinerated
  • • Big savings - the density of PET Is 1/6 of steel. Thus for a given size, 1 kg of PET will have 6 times the length compared to 1 kg of steel. In many cases where steel straps are used, the cost can be reduced upto 50% switching over to PET straps.
  • • Printing Is possible on PET Straps.

Quality

Quality Is a way of life at DeeTee and Giraffe straps are no exception. All the group companies are ISO 90012008 certified and the new plastics & packaging division also already applied.

Raw-Material

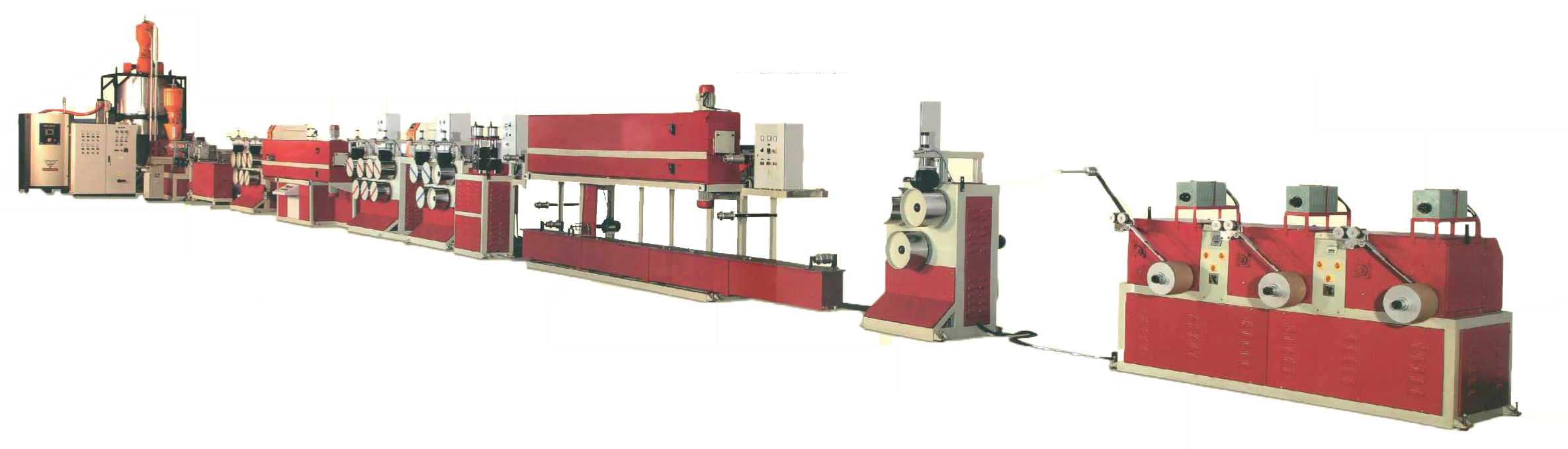

Having an Inhouse own manufacturing flakes.
plant gives us total control over the quality of input raw material for the Giraffe PET straps, Following quality parameters are ensured -

  • • IN. - min a 7
  • • Non PET elements (PVC / Other plastics; metal; dust etc) < 200 PPM
  • • Moisture content - 1% max. . Cleanliness - flakes are free from glue, oils etc.

In-process and Final Inspection

Regular samples are drawn at frequent Intervals from the line and are Inspected for -
Breaking strength and elongation
• Size tolerance
• Camber
• Spotting

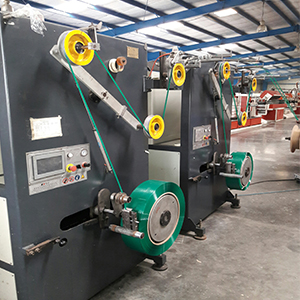

A modern and well equipped laboratory enables us to ensure top quality of the products and in R & D for improvements to meet customer needs.

Standard Specifications

Colour Green
Width 11.0 mm to 25.0 mm
Thickness 0.5 mm to 1.27 mm
Elongation at Break 10 to 18%
Surface Plain/ Emboss
Weight per Roll Approx 20-25 Kg

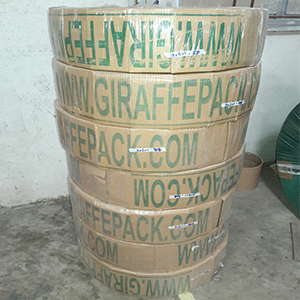

packing Corrugated sheet/ Stretch film
Printing on request
Cutting As per customer requirement
Note - The specification can be modified as per customer requirements.
PET Strap Specification
Product Size Product Code Width Thickness Weight Per Meter Breaking Strength
UOM ---- mm(±0.6) mm(±0.5) gm(±0.5) kgf(±5%)
11.0 x 0.60 DTP110060 11.0 0.60 8.9 250
12.0 x 0.70 DTP120070 12.0 0.70 11.3 320
13.0 x 0.56 DTP130056 13.0 0.56 9.7 275
15.2 x 0.64 DTP152064 15.2 0.64 13.2 370
15.5 x 0.76 DTP155076 15.5 0.76 15.6 450
15.5 x 0.80 DTP155080 15.5 0.80 16.7 470
15.5 x 0.90 DTP155900 15.5 0.90 18.8 530
15.5 x 1.00 DTP155100 15.5 1.00 20.9 585
16.0 x 0.70 DTP160070 16.0 0.70 14.9 425
16.0 x 0.90 DTP160090 16.0 0.90 19.9 545
16.0 x 1.00 DTP160100 16.0 1.00 21.5 610
19.0 x 0.80 DTP190080 19.0 0.80 20.5 575
19.0 x 0.90 DTP190090 19.0 0.90 23.0 650
19.0 x 1.00 DTP190100 19.0 1.00 25.6 720
19.0 x 1.27 DTP190127 19.0 1.27 31.8 900
25.0 x 1.00 DTP250100 25.0 1.00 33.0 930
25.0 x 1.20 DTP250120 25.0 1.20 40.0 1120
